MBX BACKSCATTER VAN
The uniXVAN MBX is a rapidly deployable mobile X-ray backscatter system designed to inspect passenger vehicles, vans, trucks, cargo and other large objects wherever screening capability is required.
Using backscatter technology to reveal concealed materials and anomalies, the MBX brings vehicle inspection beyond fixed checkpoints and permanent screening infrastructure - supporting border and customs operations, law enforcement, defence and critical infrastructure protection.
Its mobile architecture enables screening operations to relocate as routes, threats and operational priorities change, providing authorities with a flexible inspection capability for both planned and temporary deployments.
Download
DOWNLOAD DATASHEETDownload
Download link sent to your email!
THE MBX IN ACTION!
HIGH PERFORMANCE X-RAY BACKSCATTER

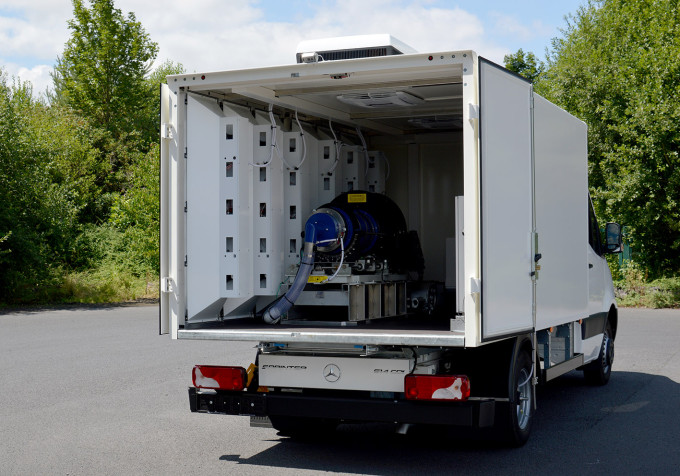

At the core of the uniXVAN MBX is a 300 kV X-ray backscatter source, providing high-energy performance in a fully mobile screening platform.
The system combines steel penetration of up to 14 mm with high sensitivity to low-density and organic materials, supporting the detection of narcotics, explosives, currency, tobacco and other concealed contraband.
Compared with conventional 225 kV backscatter systems, the higher-energy architecture provides greater penetration and increased operational flexibility across a wider range of vehicle and cargo inspection scenarios.
open-architecture scanning
Unlike tunnel-based inspection systems, the uniXVAN MBX uses an open scanning geometry, allowing operators to inspect passenger vehicles, vans, trucks, pallets, containers and oversized objects without the dimensional constraints of a fixed inspection tunnel.

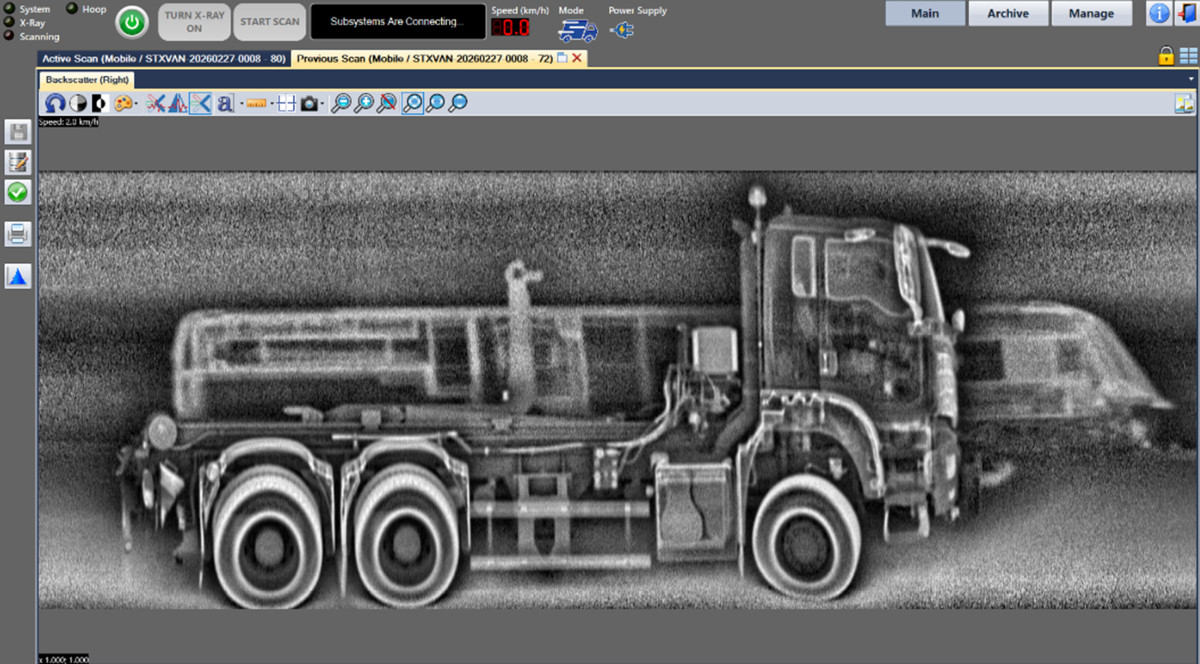

Backscatter imaging provides high-contrast visualization of low-density and organic materials concealed within vehicles, cargo and structural areas.
With scanning possible at distances as close as 1.1 metres, the MBX can also operate effectively in space-constrained environments.
FLEXIBLE HIGH-THROUGHPUT INSPECTION
The uniXVAN MBX combines high-performance X-ray inspection with operational flexibility, supporting stationary, mobile and hybrid scanning modes to adapt to different checkpoint and field operations.
With throughput of up to 400 vehicles per hour, the MBX enables efficient inspection even in high-volume environments. Its low-dose scanning concept allows vehicle occupants to remain inside during applicable screening operations, supporting faster workflows while meeting relevant radiation safety requirements.

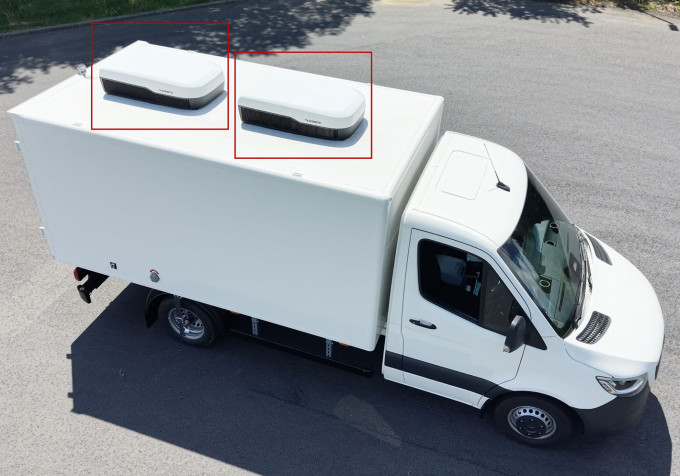

SELF-CONTAINED MOBILE INSPECTION PLATFORM
The uniXVAN MBX is engineered for continuous operation in demanding environments, combining integrated power generation, redundant climate control and ruggedized system components within a self-contained mobile platform. Designed for operation from -30°C to +55°C, the MBX can be deployed with minimal dependence on local infrastructure.

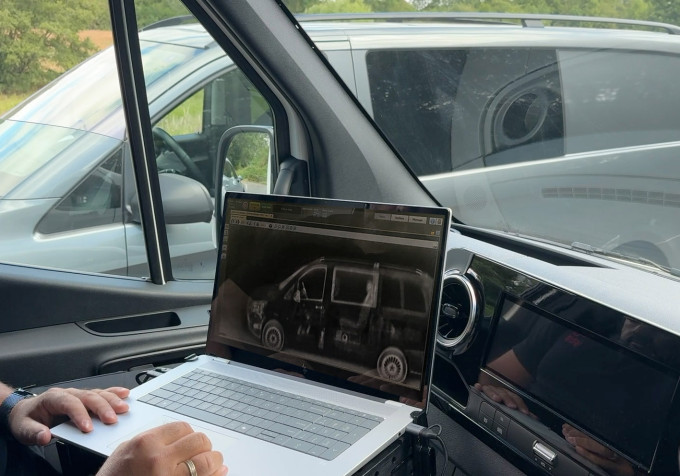

Modern software architecture, AI-assisted image analysis, secure remote connectivity and integration interfaces enable the MBX to operate as part of wider command-and-control, border management and security ecosystems.
The result is a mobile inspection capability combining rapid deployment, high throughput and advanced X-ray imaging in one platform - ready to support changing routes, temporary checkpoints, remote locations and evolving operational priorities.
Configure the MBX around your operational environment, CONOPS and screening requirements.
BACKSCATTER X-RAY IMAGING
COMMERCIAL VEHICLE X-RAY INSPECTION

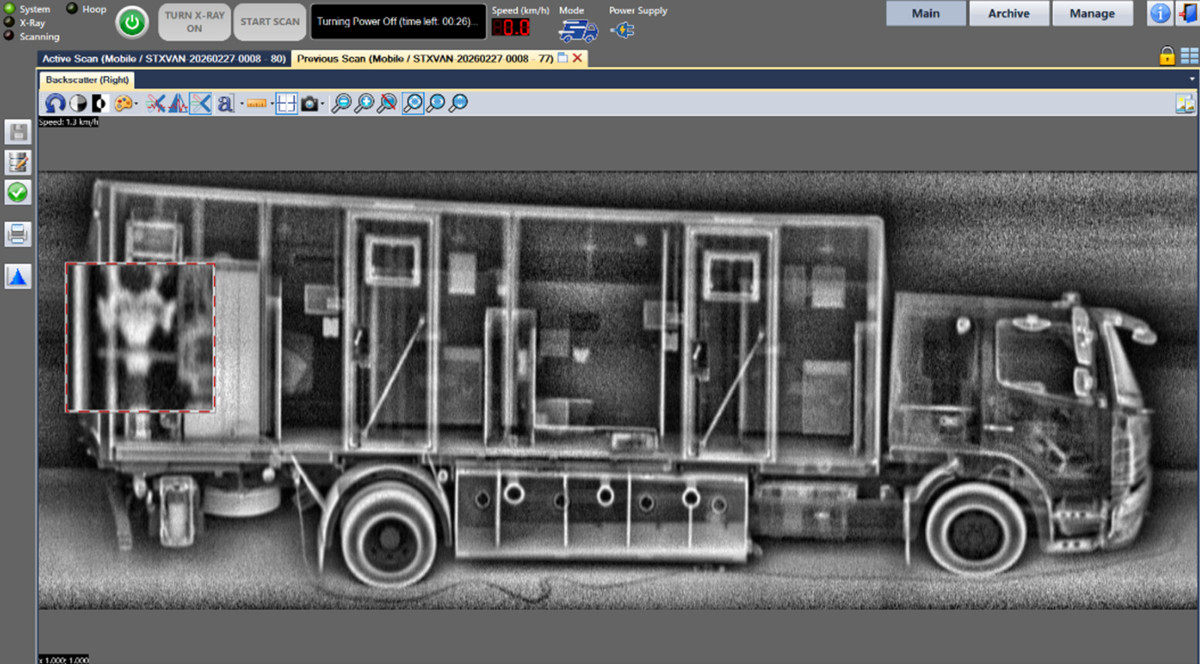

PEOPLE DETECTION

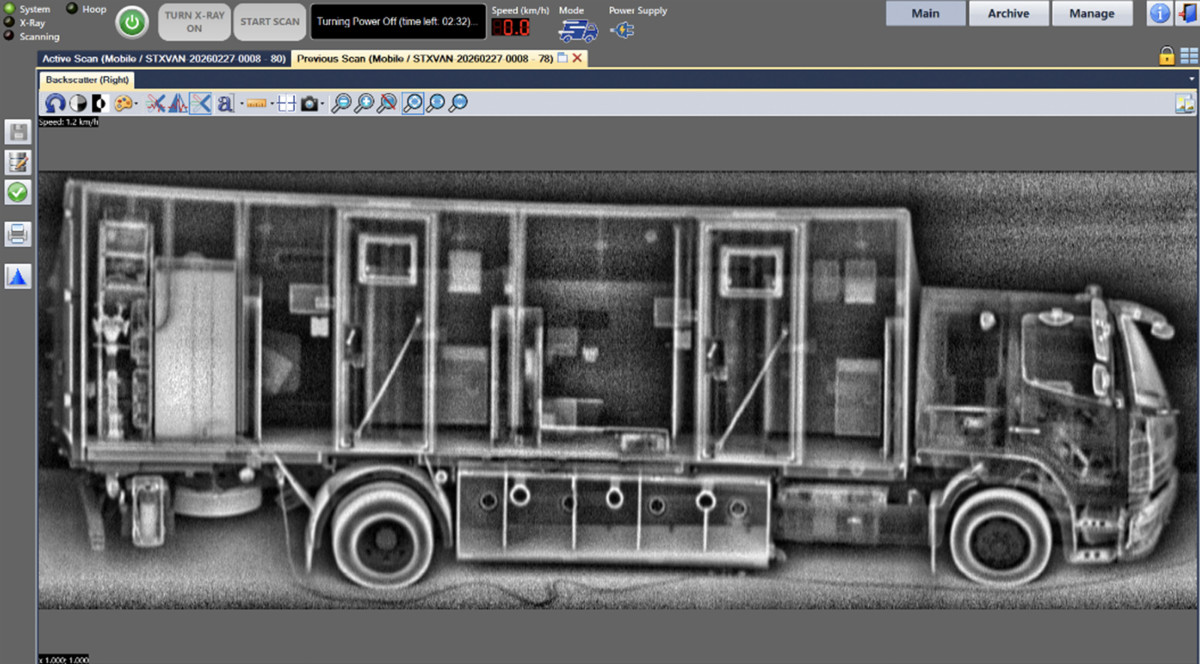

HEAVY VEHICLE X-RAY INSPECTION

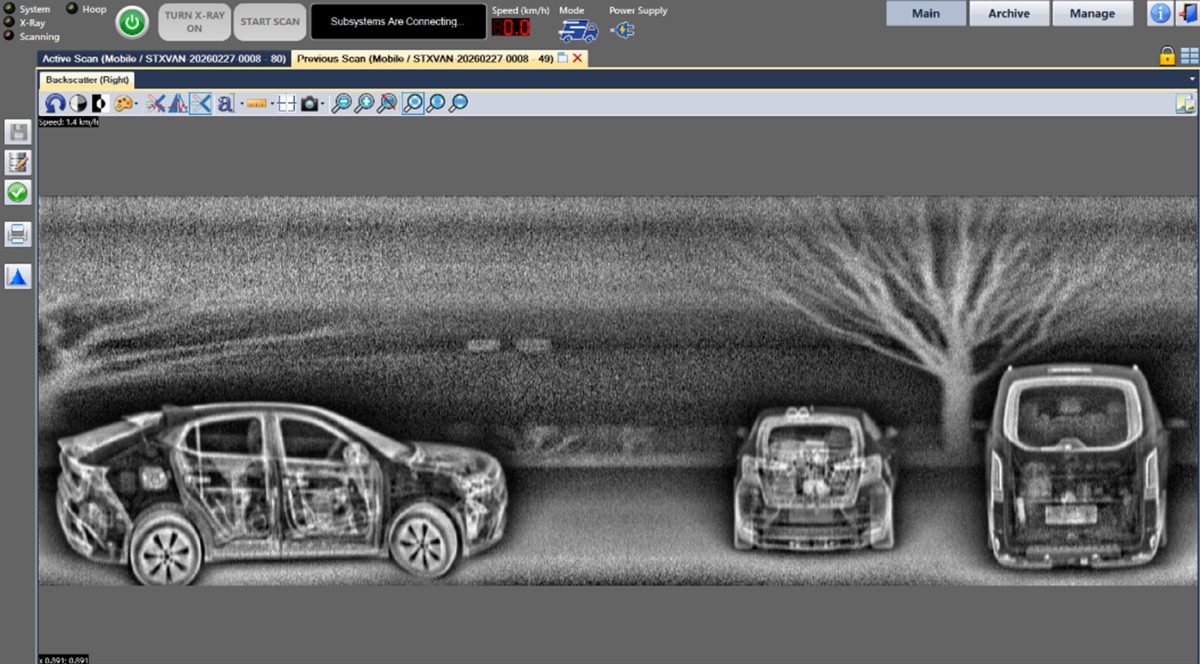

MULTI VEHICLE SCREENING
Key Features
RAPID DEPLOYMENT
Self-contained mobile platform requiring minimal local infrastructure and designed for rapid operational deployment.
300 KV X-RAY BACKSCATTER
High-energy 300 kV X-ray backscatter technology provides increased penetration while maintaining strong sensitivity to low-density and organic materials.
NANODOSE LOW-DOSE INSPECTION
Delivers high-performance imaging at less than 0.04 µSv per scan, supporting occupied-vehicle inspection in accordance with ANSI N43.17.*
HIGH-SENSITIVITY ORGANIC MATERIAL DETECTION
Backscatter imaging provides high contrast for detecting low-density and organic materials such as narcotics, explosives, currency, tobacco and other concealed contraband.
TUNNEL-FREE INSPECTION
Tunnel-free scanning geometry eliminates the dimensional constraints of a fixed tunnel, enabling inspection of passenger vehicles, vans, trucks, pallets, ULDs, oversized cargo and other large objects.
HIGH STEEL PENETRATION
Provides 13 mm guaranteed and up to 14 mm typical steel penetration, supporting inspection of vehicles and cargo while maintaining sensitivity to organic materials.
WIDE FIELD OF VIEW
Scans objects up to 3 metres wide at close operating distances, providing broad inspection coverage and flexibility in space-constrained environments.
HIGH-THROUGHPUT SCREENING
Supports scanning speeds from 1 to 20 km/h and throughput of up to 400 vehicles per hour, enabling efficient operation at high-traffic checkpoints and border crossings.

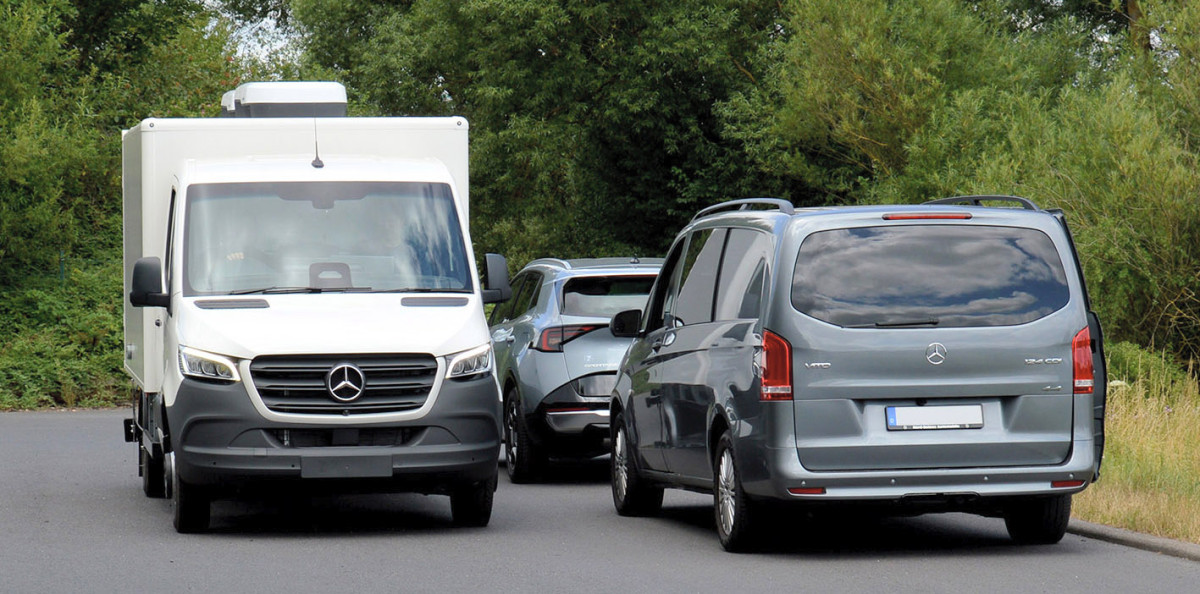

DRIVE-BY AND STATIONARY OPERATION
Supports both drive-by and stationary inspection modes, allowing operators to adapt the scanning concept to different sites, traffic flows and operational requirements.
OPEN SOFTWARE ARCHITECTURE
Supports DICOS and UFF file formats and provides interfaces for integration with third-party systems, border management platforms and command-and-control environments.
RELIABLE IN EXTREME ENVIRONMENTS
Designed for reliable performance in demanding environments, operating between minus 30°C and plus 55°C with high humidity tolerance.
MULTIPLE VEHICLE PLATFORM OPTIONS
The MBX can be integrated on a range of truck chassis and trailer platforms, allowing the system to be adapted to regional requirements, operating environments and mission-specific CONOPS.

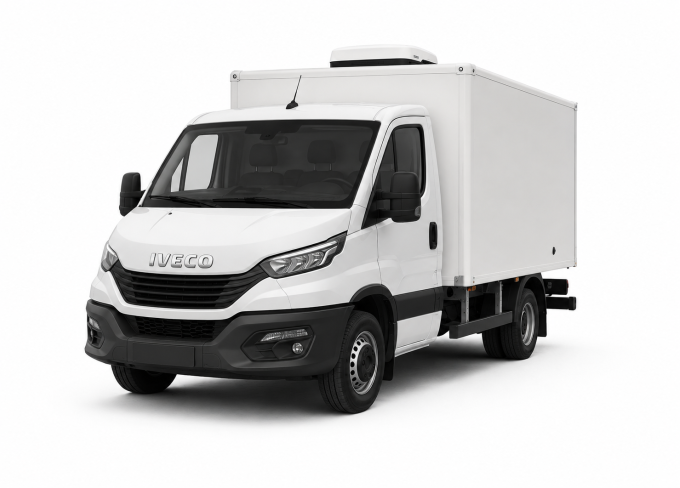

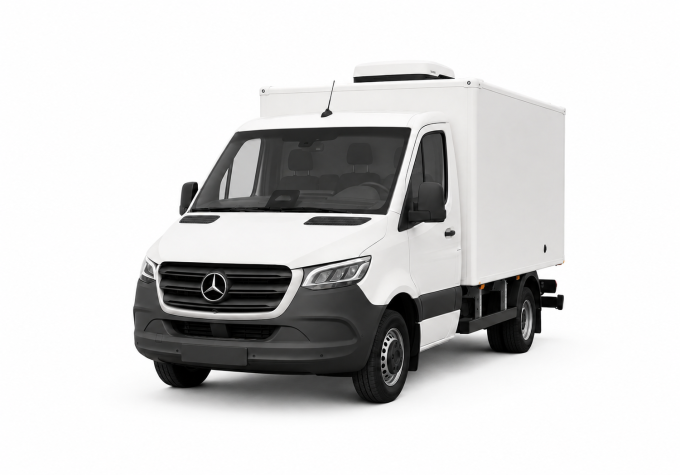

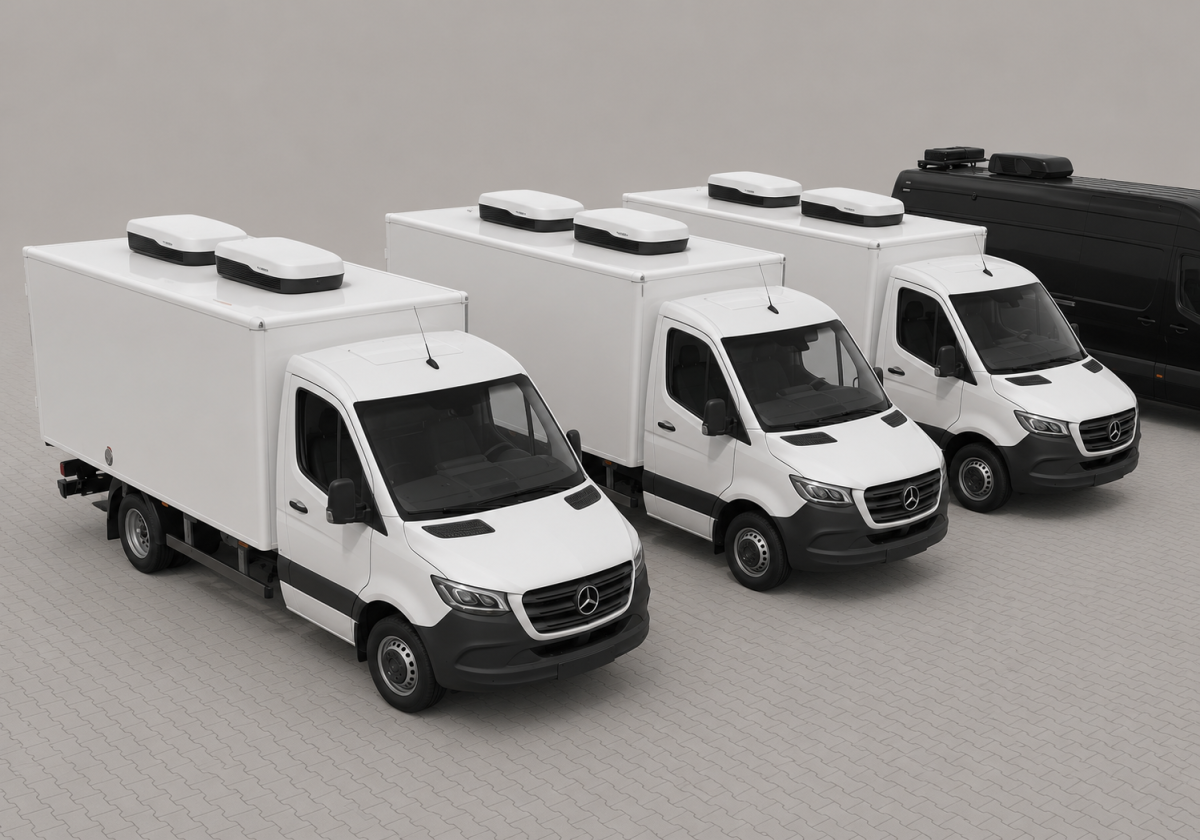

Multiple Vehicle Platforms

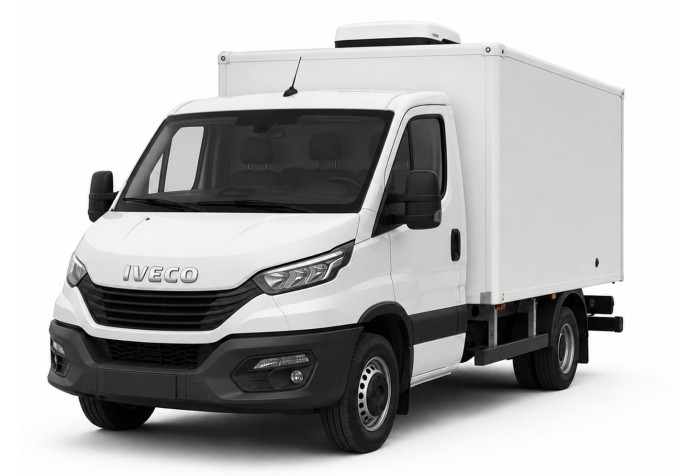

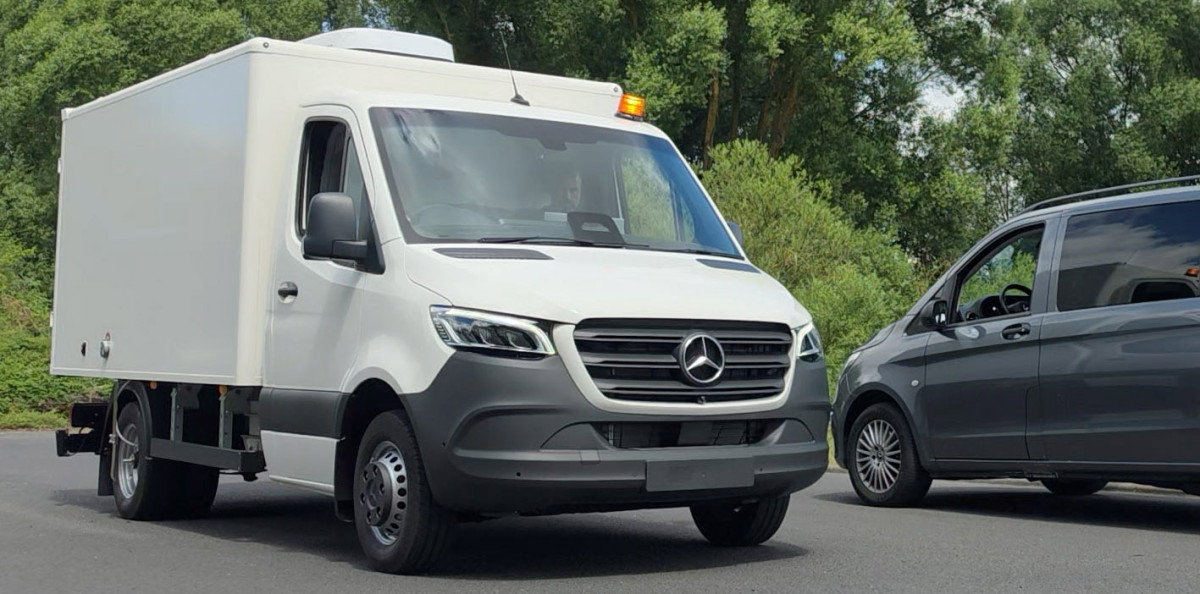

The uniXVAN MBX is designed for integration across a wide range of commercial truck chassis and trailer platforms. Mercedes-Benz and Iveco represent proven configurations, while other vehicle platforms can be selected to meet regional availability, homologation requirements, local service infrastructure and mission-specific CONOPS.
Complementary Technologies
Under Vehicle Monitoring System (UVMS)
Heartbeat Detection Systems (HDS)
Portable and Rapid Screening Systems
uniXPASS Access Management
RF Spectrum Monitoring Systems
Drugs & Explosive Detection
Drone Detection Systems
THE RIGHT SOLUTION STARTS WITH YOUR MISSION.
